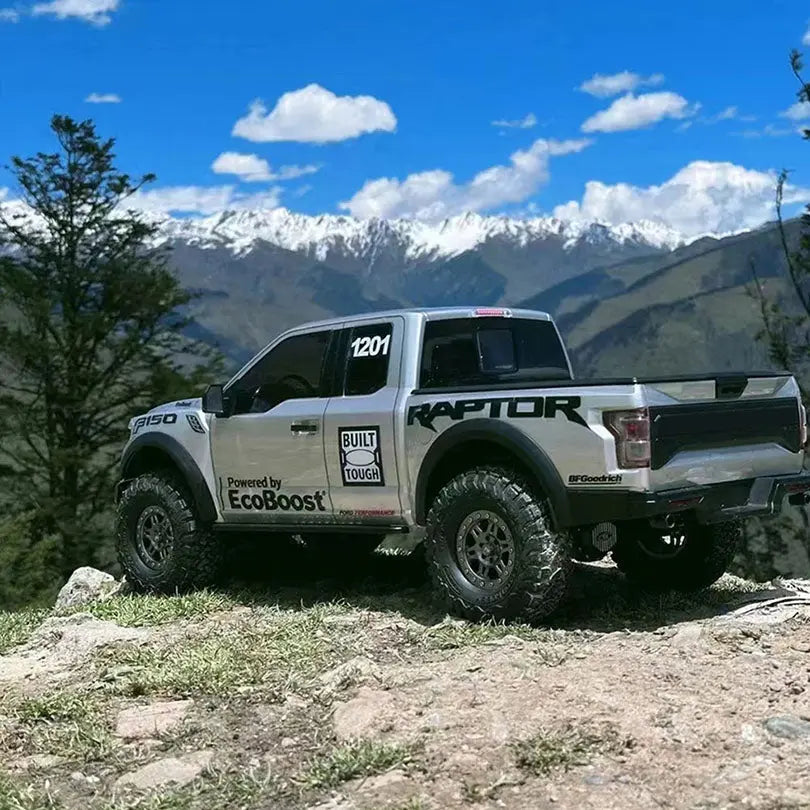

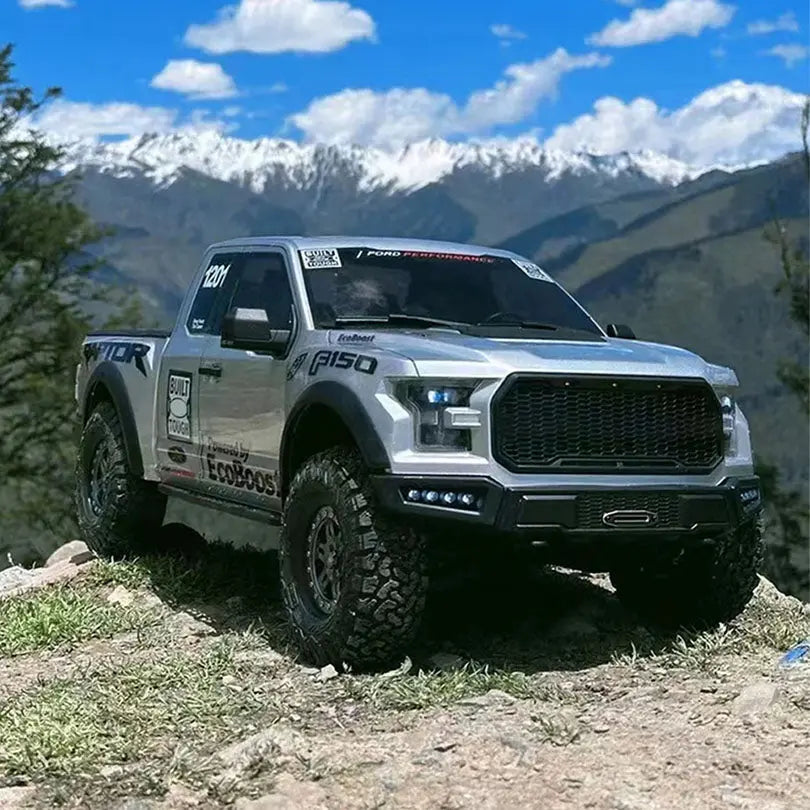

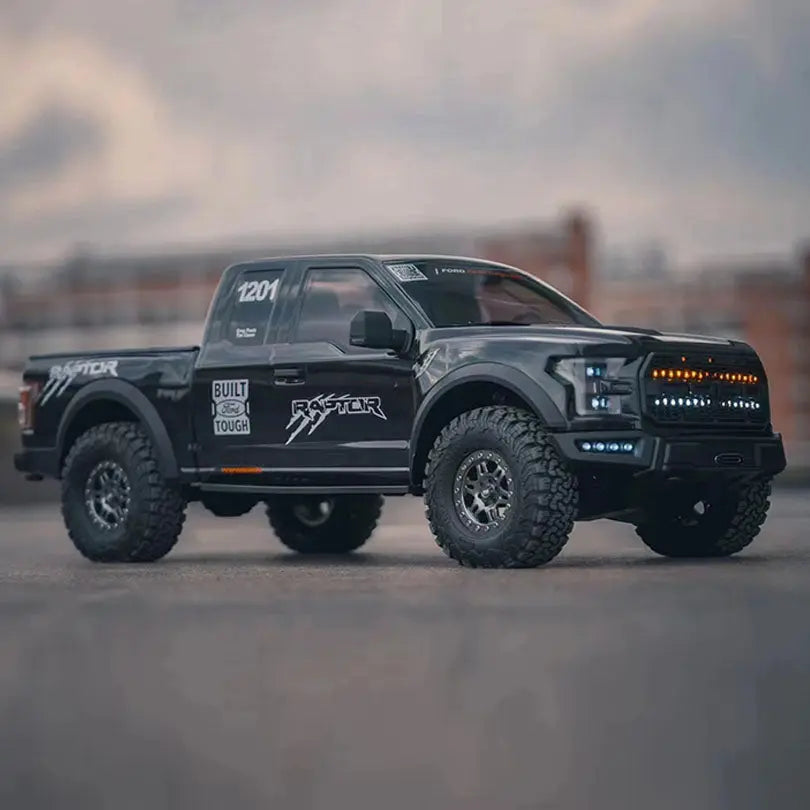

TRACTION HOBBY KM F150 FORD RAPTOR RC Car 1/8 RTR 2.4GHz Simulation Off-Road Climbing Crawler RC Car Toys
TRACTION HOBBY KM F150 FORD RAPTOR RC Car 1/8 RTR 2.4GHz Simulation Off-Road Climbing Crawler RC Car Toys
TRACTION HOBBY KM F150 FORD RAPTOR RC Car 1/8 RTR 2.4GHz Simulation Off-Road Climbing Crawler RC Car Toys

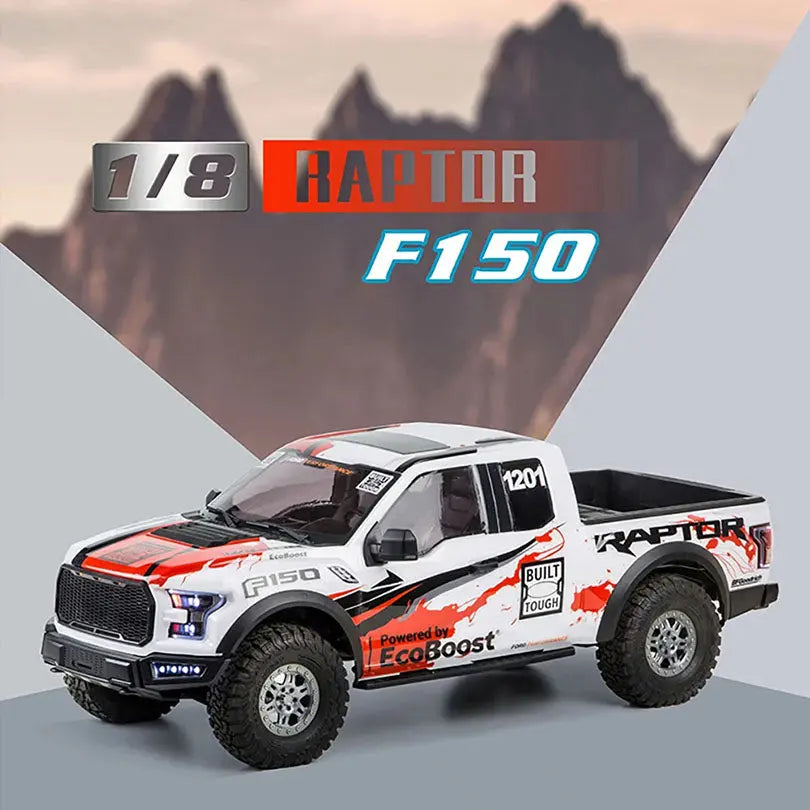

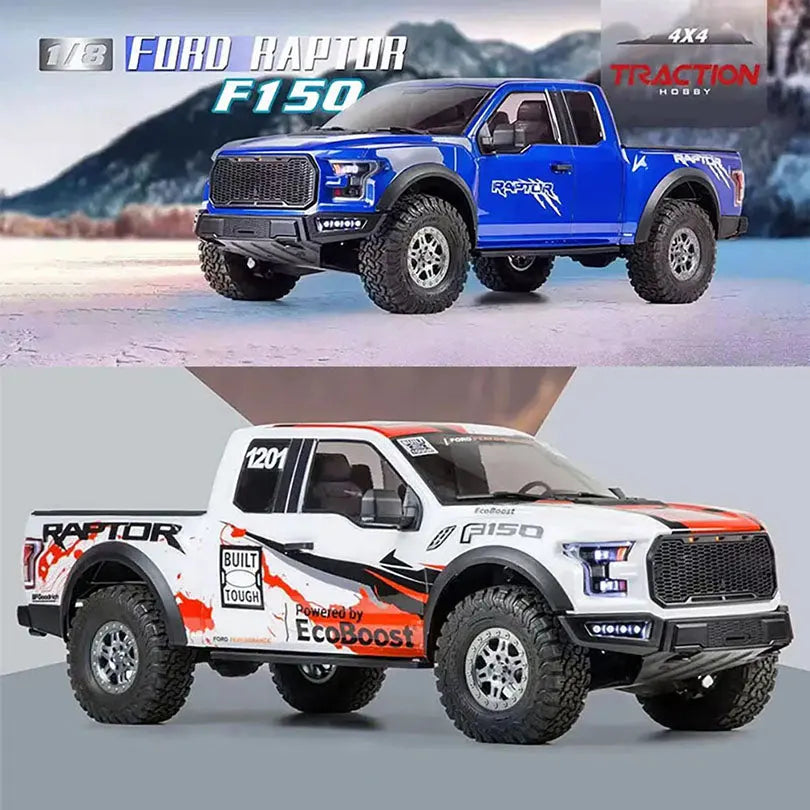

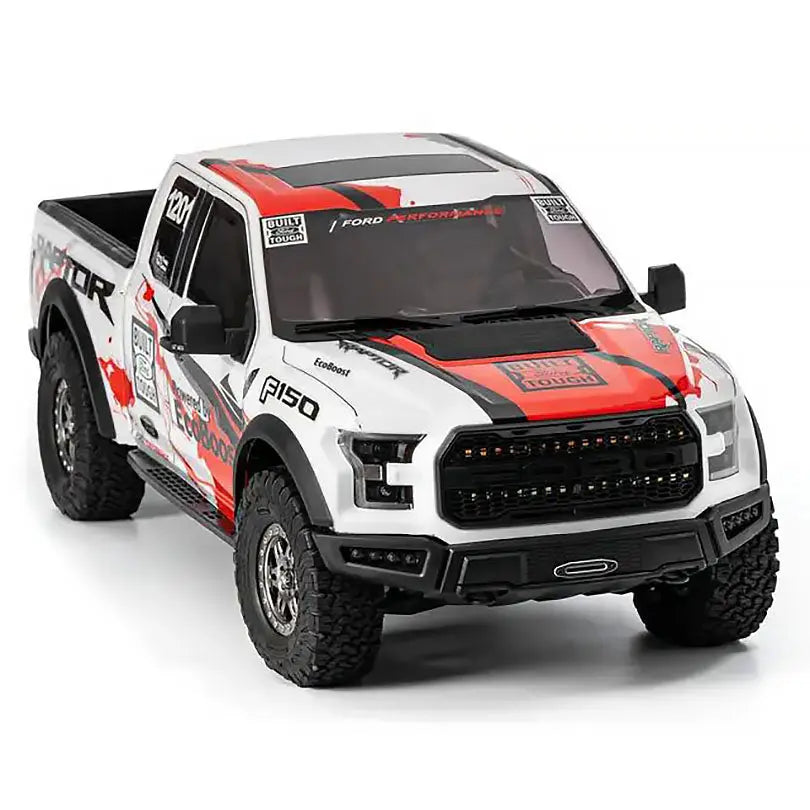

Ford Authorization RAPTOR F150 1:8（RTR）:
Manufacturer: KINGMOTOR (KM)
Model: F150
Scale: 1:8

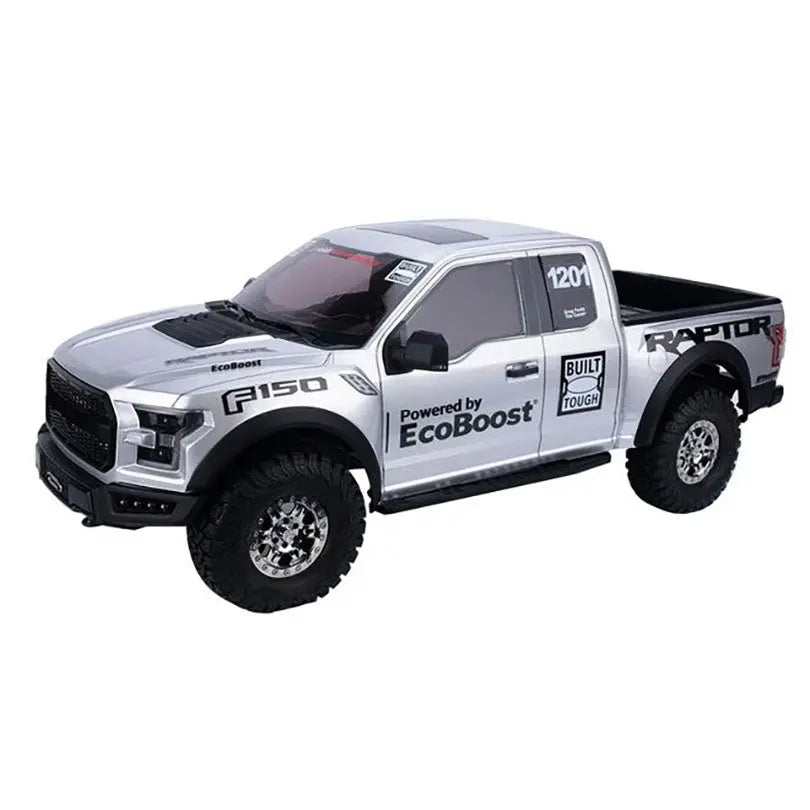

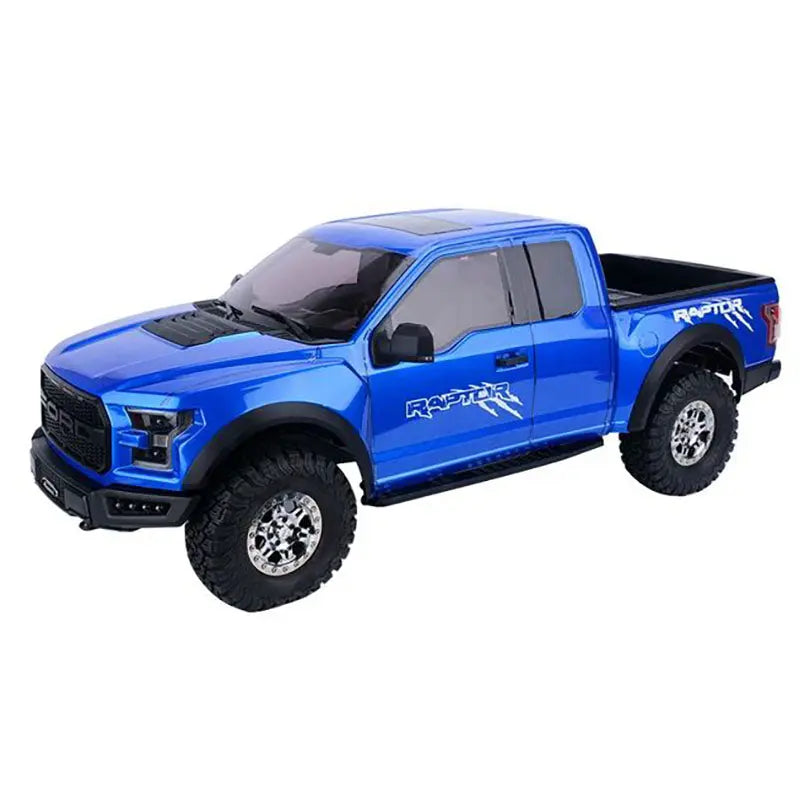

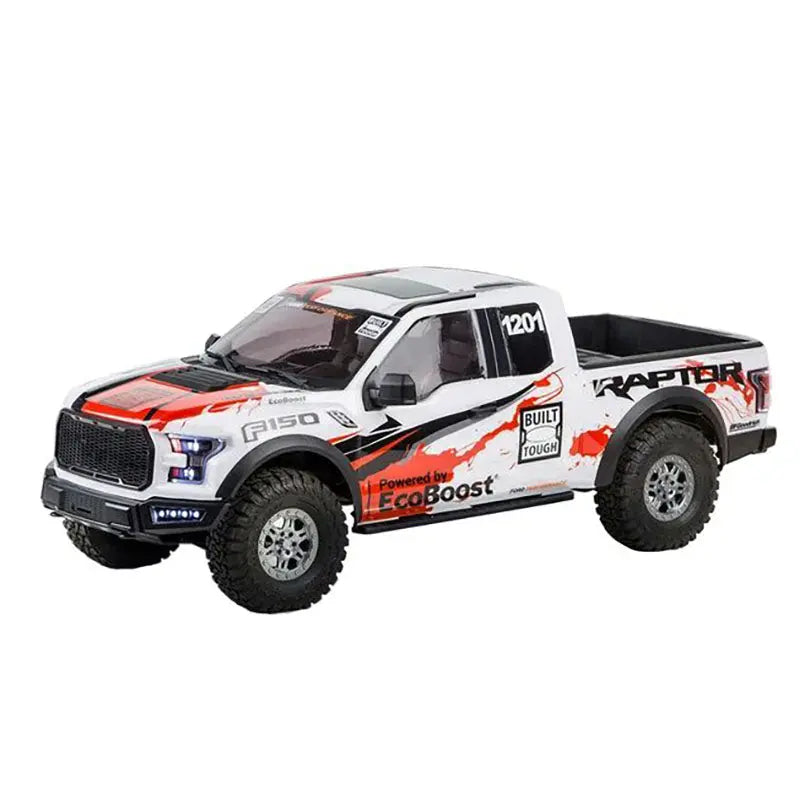

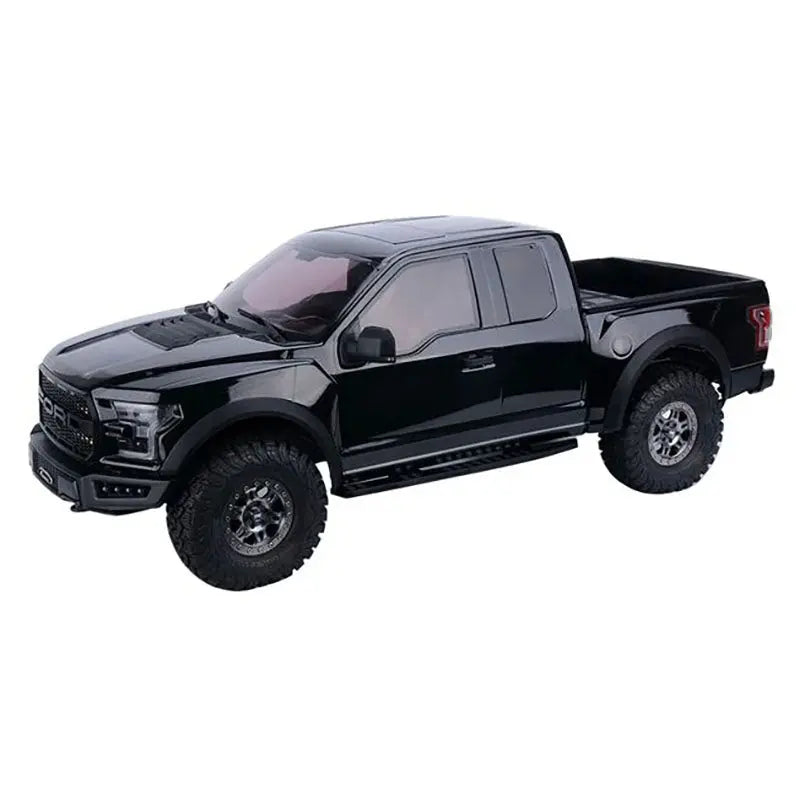

Colors: White/Blue/Black/Silver
FORD RAPTOR KM F150 Battery & Size: Available 2-4S (150mmx46mmx40mm)
Dimension: 695*280*255mm
Wheelbase: 421mm
Wheel Track: 222mm
Min Ground Clearance: 39mm
Approach Angle: 36°
Passing Angle: 32°
Departure Angle: 27°
Motors & Servos & Transmission:
FORD RAPTOR KM F150 Available Servos: 775 Brush Servo Or 1:8 Brushless Servo, D:46mm，L: 75mm
Motor Gears: Equiped 14T, Adjustable Gear Gap 12-20T
Gearbox: Integrated Gearbox, 2 Speeds / ReversionFront / Rear / 4WD In Gear box
Shifts: 2 Shifts, Metal Gears High Voltage Waterproof Servo
Broken Transmission: Servo Pulling, Metal Gears High Voltage Waterproof Servo
Steering System:
Steering System: Multi-links Rod, Metal CNC Casting
Sevro Arm: Metal Steering（25T）, Metal CNC Casting
Steering Way: Servo Pulling, 25Kg Metal High Voltage Servo
Car Structure:
Chassis: 1.5mm Steeling C-Shape Chassis
Driving: 3 differential distribute in front,middle and rear, Front/Rear/4WD
Suspensions: Front Indenpend Suspensions/Rear Solid Axle, Steel Rods
Transmission: Metal Gear, 7mm Metal Shaft
Shock Absorbers: Front Shocks: 81mm; Rear Shocks: 93mm, Full Metal
Shafts: Metal Thickening Shafts
Axles: Front Independent Suspension/Rear Solid Axle(Available Diff); Nylon Axle+CNC Axle Cover
FORD RAPTOR KM F150 Simulation Parts: Lights、Wiper、Doorknob、Wing、Internal Ornaments
Tyres/Wheel Hub: KO2 Tyre D：120mm W: 42mm, 2.2 Inch CNC Alu Hub
Electronics:

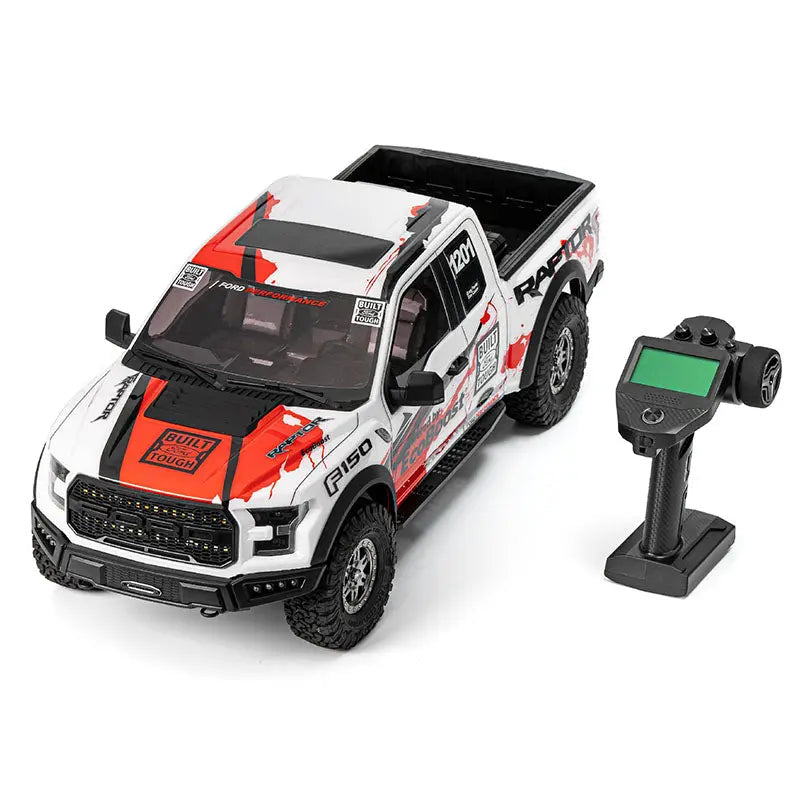

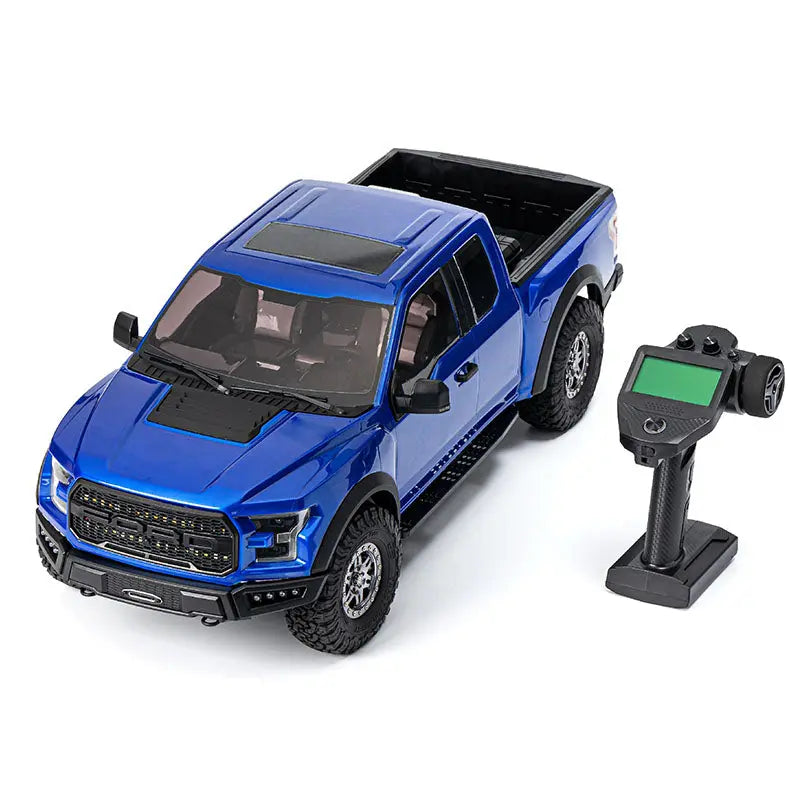

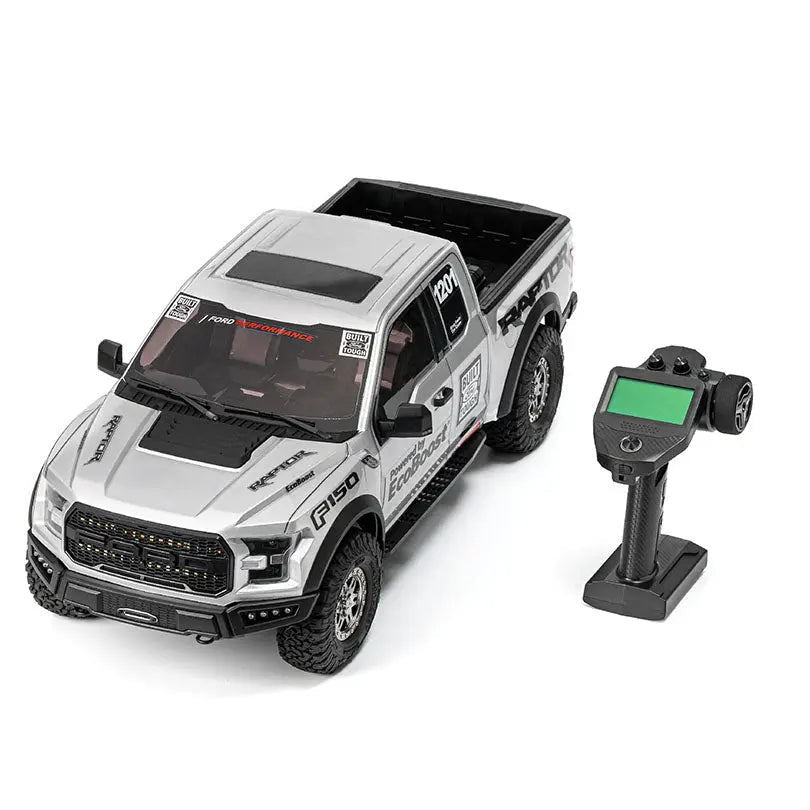

FORD RAPTOR KM F150 Remote Control: FS-G7P, 7 Channels LCD Display
ESC: Hobbywing 880（BEC7.4V）, Customized HV Water-proof ESC
Motor: RS775 Brushed Motor, Customized Motor 21000rpm
Servos: TH1623HV High Voltage Digital Steering Servo, TH1036HV High Voltage Digital Functioning Servos
Light Set: Simulation Light Set, SMT+LED
Battery: XT60 3S 5200mAh Battery (optional)
Charger: SKYRC MAX B6AC 80W Balance Battery Charger (optional)
Package weight: 8kg
Package Size: 780*360*350mm
